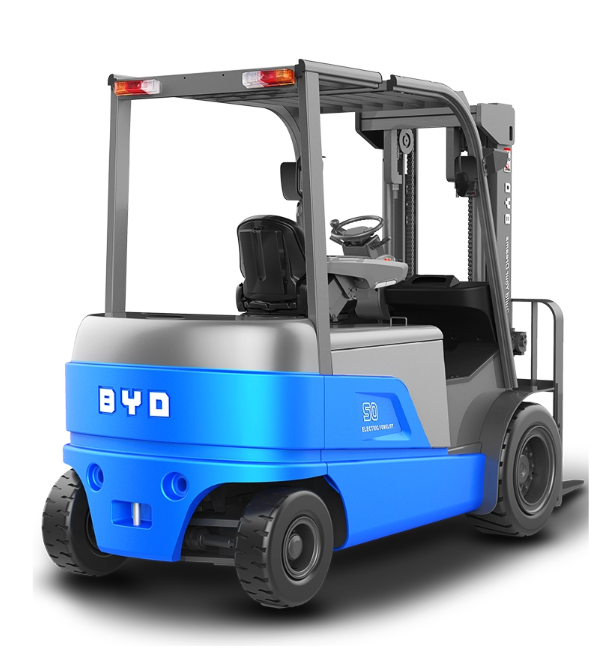

Constructed with a heavy-gauge steel chassis and finished with a durable, corrosion-resistant industrial coating, the Heavy-Duty Economical Forklift presents a formidable material handling solution for demanding operational environments. Designed for facilities that require relentless lifting power without inflated capital expenditure, this machine delivers tactile, responsive handling and a low-vibration operational hum that signifies well-engineered mechanics. Engineered for intensive daily use, it boasts a substantial 2000kg to 5000kg Load Capacity range, ensuring that heavy industrial equipment, densely packed pallets, and bulky raw materials are lifted with absolute stability. The standard configuration includes a highly rigid 3000mm Standard Lift Height mast, with structural options to extend up to 7500mm, seamlessly accommodating both floor-level staging and high-density vertical racking systems.
Driven by proven Diesel/Gasoline Fuel Options, the powertrain generates a consistent rated output of 36.8kw to 62.5kw, translating to smooth, uninterrupted torque even under maximum load conditions. Operators can select between responsive mechanical or automatic transmissions, allowing the equipment to be tailored to specific driving preferences and workflow rhythms. Navigating through constrained storage aisles is effortless thanks to a highly compact minimum turning radius of 2450mm to 3000mm. Built as a true indoor & outdoor forklift, it transitions smoothly from polished concrete warehouse floors to uneven, gravel-strewn outdoor lumber yards, supported by the deep-tread grip of its pneumatic or solid tires.
Rated Load Capacity | 2000kg to 5000kg |
Lift Height | Standard: 3000mm; Optional: 4500mm to 7500mm |
Engine Type | Diesel Engine |
Condition | Brand New |
Load Center Distance | 500mm |
Maximum Lift Speed | 400mm/h to 475mm/h |
Maximum Travel Speed | 17/19km/h to 20/24km/h |
Minimum Turning Radius | 2450mm to 3000mm |
Minimum Ground Clearance | 110mm to 170mm |
Vehicle Dimensions | 3605mm to 4350mm (Including Forks) |
Vehicle Width | 1160mm to 1400mm |
Vehicle Height | 2095mm to 2330mm |
Front Overhang | 451mm to 585mm |
Wheelbase | 1640mm to 2150mm |
Front and Rear Track | 970mm to 1190mm |
Tire Size | Front: 7.00-12; Rear: 6.00-9 to 7.00-12 |
Weight | 3320kg to 6800kg |
Standard Fork Length | 1070mm to 1220mm |
Engine Rated Power | 36.8kw to 62.5kw |
Engine Max Torque | 157Nm to 320Nm |
Optional Configuration | Chinese Xinchai Engine, Isuzu, Mitsubishi Engines |
Transmission Options | Mechanical or Automatic Transmission |
Optional Mast Configuration | 2-Stage 3000mm Mast; Optional 3-Stage 4500mm to 7500mm |
Standard Fork Length | 1220mm; Optional: 1370mm, 1520mm, 1670mm, 1820mm |
Optional Attachments | Side Shifter, Fork Positioner, etc. |
Standard Tires | Pneumatic Tires; Optional Solid Tires |
Consolidate your fleet with a machine engineered for extreme adaptability. The Heavy-Duty Economical Forklift delivers a broad load capacity spectrum (2000kg to 5000kg) paired with adjustable lift heights (3000mm to 7500mm). The hydraulic system engages with a reassuringly smooth, fluid motion, eliminating the jerky movements that can destabilize sensitive loads. Whether you are repositioning lightweight packaging materials or hoisting dense, cast-iron machinery components, the mast maintains absolute rigidity, boosting overall workflow efficiency and reducing the time spent staging materials.
Fuel procurement and consumption directly impact your bottom line. By offering Diesel/Gasoline Fuel Options, this forklift allows procurement managers to align their equipment with local fuel availability and budget constraints. Beyond simple fuel choice, the powertrain integrates intelligent energy management principles that optimize combustion and reduce wasteful idling consumption. This focus on thermal efficiency and low-maintenance engine architecture significantly lowers the Total Cost of Ownership (TCO), ensuring a rapid return on investment for large-scale logistics operations.
Manufactured to strict CE & ISO standards, this forklift provides verifiable assurance of safety and structural integrity. The heavy-duty steel chassis resists the daily impacts and abrasions common in fast-paced industrial environments. Furthermore, critical electrical and motor control components are shielded with high-level ingress protection (such as IP54/IP65 equivalent sealing), rendering the machine highly resilient against airborne dust in manufacturing plants and sudden downpours in outdoor sorting yards. This extreme environmental adaptability drastically minimizes weather-related downtime.
Space is a premium asset in any storage facility. The forklift’s compact turning radius (2450mm to 3000mm) and responsive travel speeds (17/19km/h to 20/24km/h) are complemented by an advanced drive control system. This technology enables intelligent cornering deceleration and millimeter-level positioning precision. Operators can confidently thread heavy loads through narrow aisles and congested loading docks without the risk of racking collisions, maximizing your usable floor space.
No two supply chains are identical, which is why this forklift acts as a versatile tool carrier. Optional side shifters and fork positioners allow operators to align loads perfectly without physically moving the vehicle, saving precious seconds on every lift. With customized fork lengths ranging from 1220mm to 1820mm, handling oversized or irregularly shaped cargo becomes a secure, routine task rather than a logistical challenge.
Operator fatigue is a primary cause of productivity loss and handling errors. To combat this, the cabin features a human-centric ergonomic layout. A premium shock-absorbing seat isolates the driver from floor vibrations, while the tactile fingertip hydraulic control system requires minimal physical exertion to operate heavy loads. This comfortable, intuitive workspace ensures operators remain alert and efficient throughout extended shifts.
Protecting personnel and inventory is paramount. The mast is engineered to provide a panoramic, unobstructed line of sight, allowing the driver to monitor the fork tips and surrounding foot traffic clearly. Above, a high-strength steel overhead guard protects against falling debris. Coupled with a highly responsive, intelligent brake assist system that provides firm, immediate stopping power, the forklift creates a secure operational perimeter at all times.
When maintenance is required, speed is critical. The engine compartment opens wide to provide unhindered access to all core filters, belts, and fluid checkpoints. Additionally, the electrical system supports plug-and-play smart fault diagnostics. Technicians can quickly interface with the machine to pinpoint issues instantly, eliminating guesswork, drastically reducing maintenance labor hours, and getting the equipment back on the floor where it belongs.
Procuring heavy machinery requires careful alignment with your facility's specific demands. Our dedicated engineering team provides an in-depth consultation to analyze your operational bottlenecks, aisle dimensions, and typical cargo weights. Based on this data, we guide you in selecting the optimal load capacity, lift height, fuel type, and specialized attachments. Whether you require standard configurations for general warehousing or heavily tailored solutions for unique manufacturing environments, we ensure the final build matches your exact workflow requirements.
Navigating international shipping regulations can be complex and time-consuming. We completely manage the export process, coordinating secure container loading, maritime shipping arrangements, and the preparation of all necessary customs documentation. Our logistics specialists ensure that the equipment complies with the specific import regulations of your target market, guaranteeing a predictable, delay-free transit from our manufacturing floor directly to your global loading dock.
To ensure your operations never experience prolonged downtime, we provide comprehensive remote technical guidance. While we do not deploy physical maintenance crews worldwide, our expert technicians are available to troubleshoot operational anomalies and provide step-by-step usage optimization via digital channels. If a confirmed product quality issue arises within the first year of operation, we promptly dispatch free replacement spare parts. Our remote support team will then guide your on-site mechanics through the installation process, ensuring swift, independent resolution.
The forklift is engineered to securely lift and transport loads ranging from 2000kg up to 5000kg. This broad capacity spectrum makes it an exceptionally versatile asset, capable of handling everything from standard retail pallets to dense, heavy industrial components and construction materials with unyielding stability.
Yes, the equipment is available with flexible Diesel/Gasoline Fuel Options. This allows you to select the powertrain that best aligns with your facility's existing fuel infrastructure, indoor/outdoor usage ratios, and long-term operational budget requirements.
Absolutely. The machine is built around a heavy-duty chassis that withstands rigorous environments. By selecting the appropriate pneumatic or solid tire options, the forklift delivers excellent traction and shock absorption, performing equally well on smooth indoor warehouse concrete and uneven outdoor construction yards.
The equipment is rigorously tested and meets stringent CE & ISO standards. These certifications guarantee that the forklift complies with recognized global safety, environmental, and manufacturing quality benchmarks, ensuring reliable deployment in international facilities.
We stand behind our equipment with dedicated remote technical guidance designed to support your on-site maintenance teams. For any quality-related defects identified within the first year, we supply the necessary spare parts free of charge and provide detailed remote instructions to facilitate a smooth, independent replacement process.
